Straddle carrier

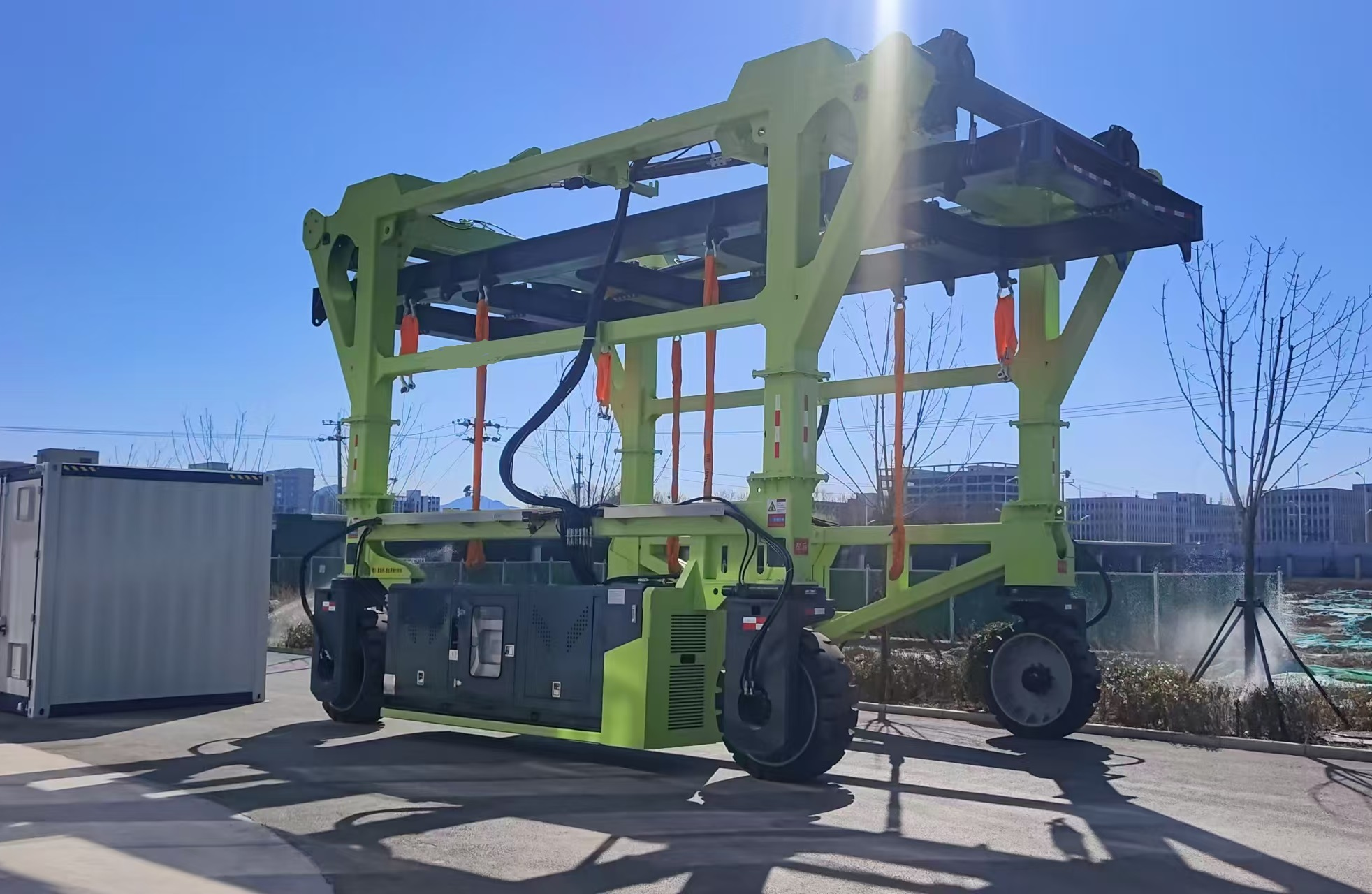

The multifunctional straddle carrier is primarily used for the transfer and transportation of containers, energy storage cabinets, and non-standard oversized components between workstations in production processes, as well as loading and unloading operations. With features such as lifting and unloading, load-carrying travel, high mobility, multi-applicability, and safety reliability, the straddle carrier can independently perform tasks like the transfer, movement, and loading/unloading of heavy...

INQUIRY

Detailed Description

Technical Specifications for Multifunctional Transport Vehicles

1、Introduction to intermodal transport vehicles

The multi-functional transfer vehicle is primarily designed for handling containers, energy storage cabinets, and non-standard oversized items during material handling and loading/unloading operations across production process stations. Featuring lifting and unloading capabilities, load-bearing mobility, high-efficiency maneuverability, versatility, and reliable safety, this vehicle can independently complete the transfer, handling, and loading/unloading of heavy containers and energy storage cabinets without requiring additional equipment.

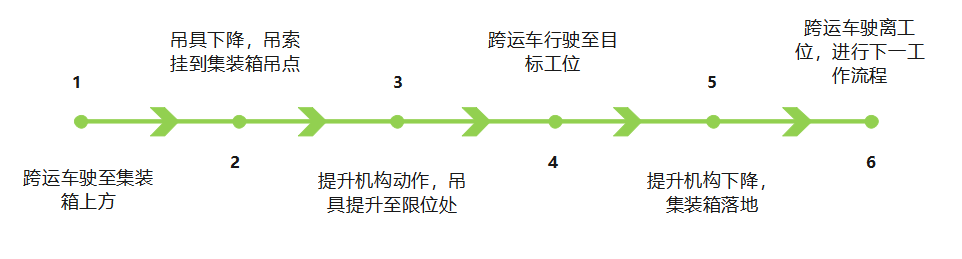

The multi-functional cross-carrying vehicle consists of a chassis, powertrain, hydraulic system, control system, lifting mechanism, steering mechanism, lifting device, and safety/auxiliary functions. Its working principle is as follows: The powertrain (diesel/electric) drives a hydraulic variable pump to provide hydraulic power for all hydraulic motors and cylinders, enabling the vehicle's movement, steering, and lifting operations. During operation, the operator either drives the vehicle manually or uses a remote control. The vehicle travels along the container's length until it reaches the top, where the lifting device is secured to the container by either an automated system or manual installation. Subsequently, the vehicle's lifting, moving, and turning functions are controlled to facilitate loading/unloading and transshipment of containers.

2、The solution is adapted to the material and site environmental requirements.

standard container	Standard container compatible with other containers	energy storage container	Energy storage container compatible with other containers	unclassified stores	Description of other materials	Automatic hoisting system with compatible lifting points	Other types of lifting equipment
£	R	£	£	£		£	multi-point sling

Fit material specifications:

product	*Dimensions (lengthwidthheight mm)*	weight （t）	Lifting method	remarks
standard container	1219224382896	45	(Top (Bottom

Note: The multi-point integrated hoisting system is compatible with other box sizes (based on the customer-provided dimensions).

Site environment requirements:

1、Location: Customer site, outdoor use

2、Size restrictions: The site imposes no size limits on the transshipment vehicle's exterior dimensions, as shown in the schematic diagram.

3. Ambient temperature: -10℃ to 45℃;

4. Relative humidity: 30%-95%;

5. Minimum door size required: None

Special note: If there are specific requirements for operating conditions, installation site, or environment, please specify during the planning phase, such as whether access to the workshop, movement between workstations, slope requirements, or installation in special locations is needed.

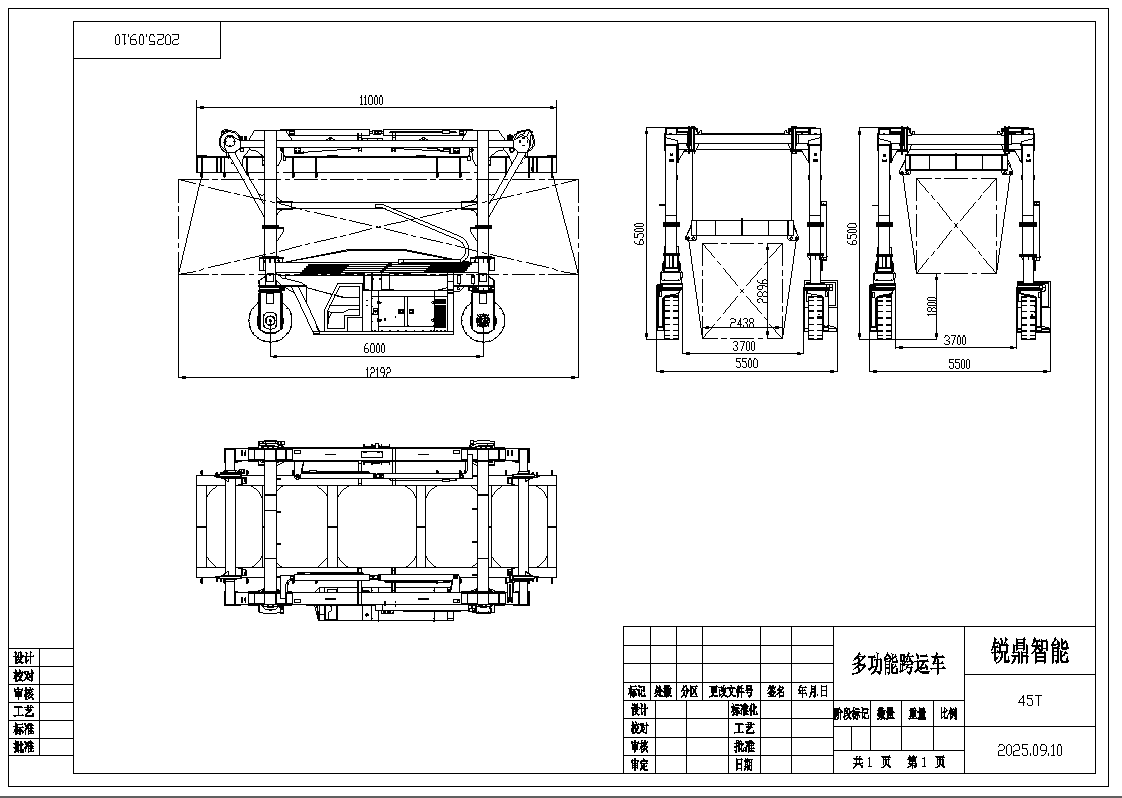

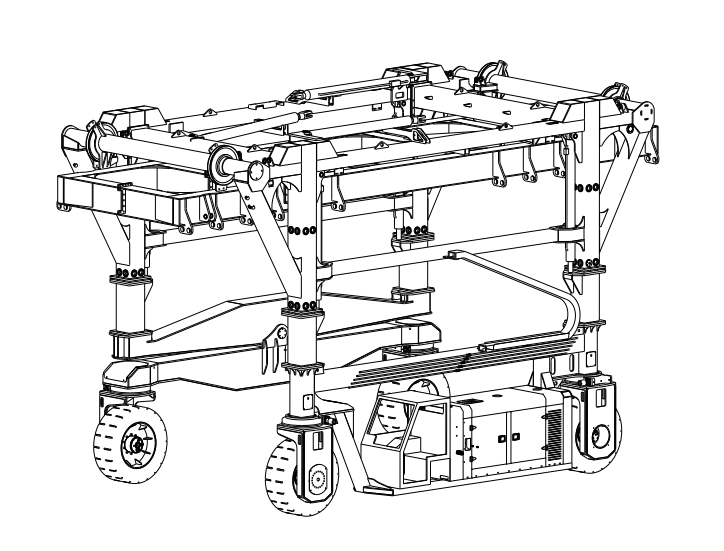

3、Equipment diagram

unit type

hoisting capacity （t）

Length*Width*Height

（mm）

wheel base （mm）

Lift (mm)

conduct oneself with dignity

（t）

form

RD450-D

11000*5500*6500

6000

1800

4 rounds

Parameter description:

Note: The one-time plan size will be finalized according to the technical agreement after further discussions.

4、Core indicators and key parameters

Key metrics
1	maximum ready mass	30 tons
2	Lifting rated load	45 tons (unloaded, excluding the weight of the lifting beam and pallet)
3	lifting altitude	>1.8 meters
4	lift speed	0～3m/min
5	descent speed	0～3m/min
6	no-load walking speed	0～5Km/h	freely variable speed
7	maximum speed under full load	0～3Km/h	freely variable speed
8	Walking slope angle	3% when fully loaded, 6% when unloaded
9	Overall turning radius of the large vehicle	<11 meters
Key technical parameters
1	Total length of the machine	≤11.0m
2	Total width of the machine	≤5.5m
3	inner net width	≥3.7m
4	Total height of the machine	≤6.5m
5	wheel base	6.0m
6	engine power	103kw
7	steering system	4-wheel steering
8	Number of tires	4 rounds
9	Control method	Wireless remote control and cab

5、Key component brands

order number	name	brand	remarks
1	dynamical system	Weichai
2	walking pump	DANFOSS/CASSAPA
3	working pump	DANFOSS/CASSAPA
4	master multi-way valve	NEEYU/Oil Force
5	auxiliary valve group	NEEYU/Oil Force
6	walking reducer	PMP/OMNI
7	walking motor	DANFOSS/DANA
8	tyre	semite
9	controller	Rui Ding-Custom
10	Relays, contactors, terminals	Schneider/Chint/Wanke
11	remote-control handle	Rui Ding-Custom
12	slings for lifting loads	Rui Ding
13	pilothouse	Rui Ding

remarks ：

1、Specific brand requirements may be adjusted through communication with Party A.

2、If the selected component brand does not meet Party A's requirements, we will use our default configuration.

6、Introduction to the main performance features

Product features:

Ø Compact structure with robust performance: The load-bearing structure meets Q355 steel strength standards, while the entire vehicle undergoes ANSYS finite element analysis for optimization.

Ø The hydraulic system is mature and easy to maintain, with imported hydraulic components and an optimized hydraulic system.

Ø Compact and maneuverable: The vehicle features a compact design with four-wheel steering, enabling a narrow turning radius. This makes it ideal for indoor factory operations without requiring AGV assistance.

Ø High safety performance: The system features lifting and pulling safety anti-fall locking, load adjustment, audio-visual warnings, outline lights, dangerous action locking, and protective devices. Additionally, it employs remote control operation, ensuring operator safety when working at a distance from heavy objects.

Ø Smart Control: The remote control is easy to operate, and the vehicle display shows real-time status, including operation, steering, and lifting data. A single button allows you to check vehicle faults instantly.

The main components of the transshipment vehicle are frame, powertrain, hydraulic system, control system, lifting mechanism, steering mechanism, lifting device and other safety and auxiliary functions.
1. The main body of the vehicle frame
act on	It is used to fix the parts and keep them in the right relative position, and to bear the static and dynamic loads from the car and the ground.
Performance Introduction	Ø The manufacturing material of the main load-bearing component must match the performance of Q355 steel, and the equipment's mobile load should withstand a 10% overload. Ø The steel is cut by CNC, and the weld is polished smoothly without sharp cuts. Ø All bolts and nuts are threaded to the metric 10.9 standard and comply with ISO specifications. Both bolts and nuts are equipped with anti-loosening or anti-disengagement measures. Ø The buffer rubber is arranged at the contact position between the rack and the container. Ø The steel surface must undergo sandblasting or shot blasting prior to painting. The minimum degreasing and rust removal grade is Sa2.5, with manual rust removal applied to localized blind spots at a minimum grade of St2.5.
2. Powertrain
act on	Diesel engine power provides the power source for the cross transport vehicle's movement, turning, lifting and so on.
Performance Introduction	Provide a detailed engine parameter table
3. Hydraulic System
act on	Power Supply for the Lifting of Cross-transport Vehicle
Performance Introduction	Ø The valve group sensitive proportional valve ensures precise control. Ø Hydraulic cylinder features reliable performance, built-in magnetic scale, and imported oil seals. Ø The pipe joint is clamped and fixed on the frame to withstand vibration and impact. Ø The design of the hydraulic oil tank is convenient for cleaning, the filter element is easy to replace, and the oil level gauge is easy to observe. Ø The hose length at the lifting section is moderate and is secured and protected by a tank chain or other means to ensure that it does not get blocked or damaged by bending or external forces during operation. Ø The hydraulic system of the lifting mechanism has the ability of self-locking.
4. Control System
act on	The vehicle control is realized by controlling the valve group of the hydraulic system.
Performance Introduction	Ø The car computer control has simple control logic and convenient maintenance. Ø The anti-interference measures and electrical isolation measures in the design of control cabinet can avoid magnetic field interference. Ø The door of the electrical control cabinet is equipped with a button spring lock for easy maintenance. The edges and corners of the cabinet are sealed to prevent dust from entering and accumulating inside. Ø The emergency stop button can cut off all power sources as an emergency trigger.
5. Lifting mechanism, walking and steering mechanism
act on	Monitoring and Execution of Lifting, Pulling, Moving and Turning Actions of Cross-transport Vehicle
Performance Introduction	Ø The running adopts the static pressure transmission, the reducer and the hydraulic motor are placed in the drive wheel, which is safe and reliable. Ø The steering mode can be realized by the steering mode of straight line with reverse gear, small angle slant, front wheel steering and rear wheel steering. Ø The walking speed can be adjusted freely. Ø The lifting hydraulic cylinder is equipped with a hydraulic lock (balance valve), so that the hydraulic cylinder will not slide down even if the external pipeline bursts.
6. Safety and Auxiliary Features
act on	Improving the Vehicle Safety Performance and Operation Convenience
Performance Introduction	Interlock function: The lifting system is not allowed to operate when the vehicle is turning. Self-locking mechanism: In case of pipeline leakage or rupture, the hydraulic system automatically locks to prevent load collapse. The limit of the turning cylinder is set to the lifting and turning, etc. When the limit is reached, the pressure will be released if the oil is supplied. Height limit: there are mechanical limit and soft limit. Two-speed: Features high and low speed settings. Warning and lighting lights: anti-vibration lighting lights and warning lights are installed on the side of the vehicle frame. Safety signage and protection: All signs, cables, and pipelines are installed in iron conduits or steel clamps, with protective sleeves on oil pipes to ensure overall aesthetics.

7、Random delivery scope

Number	name	quantity	unit	remarks
1	straddle carrier	1	tower
2	slings for lifting loads	1	cover	Customized based on container dimensions
3	remote-control handle	1	cover	wireless remote control
4	Operation key	1	cover
5	charging pile	/	tower	Depending on the configuration of the power form
6	Equipment installation and training	1	cover	Determined based on the customer's situation
7	After-sales service	1	cover	Structural components: 3 years; complete machine: 1 year (excluding wear-prone parts)

order number	name	Provide quantity	remarks
1	certificate of competency	1 copy	One paper copy and one electronic copy
2	Equipment Operation Manual	1 copy	One paper copy and one electronic copy
3	Equipment Maintenance and Repair Manual	1 copy	One paper copy and one electronic copy
4	General equipment layout	1 copy	One paper copy and one electronic copy.
5	List of consumable parts for the equipment, etc.	1 copy	One paper copy and one electronic copy

1. The design of the large truck for cross transportation shall comply with the national standard "GBT 3811-2008 Crane Design Code", and ensure that the equipment meets the current national quality acceptance standards for mobile lifting machinery.

2. Party B shall be responsible for all auxiliary materials, tools, jigs, and equipment required for the manufacturing, installation, and commissioning of the equipment.

3. The installation and commissioning of new equipment takes approximately 3-5 days.

4. Party B shall provide free training for Party A's operation and maintenance personnel, with a duration of 1-2 days and a minimum of 3-4 participants. The training will cover fundamental principles, operational procedures, maintenance techniques, upkeep practices, and troubleshooting methods.

Random gifts:

order number	name	brand	quantity	remarks
1	service aid	/	1 set
2	quick-wear part	/	1 set

8、After-sales service description

1. Ensure the equipment meets the current national quality acceptance standards for mobile lifting machinery, with a 100% first-time acceptance rate for the project.

2. Party B shall provide Party A with the equipment maintenance manual. Product warranty period: Starting from the delivery date, the equipment's overall quality warranty is 1 year, and the steel structural components are guaranteed for 3 years. Main components follow the manufacturer's specifications, excluding wear-prone parts. The product offers lifetime repair and genuine parts service.

3. Upon receiving a customer's call, the response time shall not exceed 4 hours, with solutions to be provided within 24 hours. For routine minor issues, technicians will communicate via phone to guide the customer through troubleshooting. If the issue cannot be resolved over the phone, Party B shall provide replacement parts free of charge during the warranty period for manufacturing defects, and arrange for their delivery to the location specified by Party A, excluding parts damaged by improper handling or accidental incidents.
