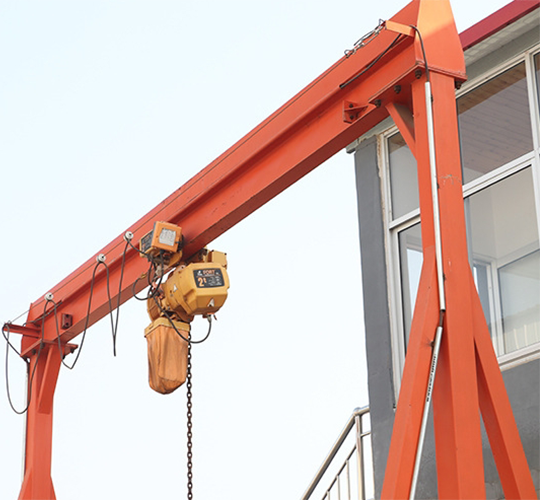

Small Mobile Gantry Frame Product Introduction

A Small Mobile Gantry Frame is a compact and versatile Crane system designed to move along a fixed path or track to lift and transport loads in a wide range of applications. It features a smaller, more portable design compared to larger gantry cranes, making it ideal for tasks in tight spaces, smaller workshops, or temporary installations where mobility and flexibility are required.

Key Features:

1. Compact and Portable Design:

• The Small Mobile Gantry Frame is lightweight and easy to transport, designed for operations in areas with limited space. Its compact size allows for efficient handling of small to medium-sized loads in environments where larger cranes cannot fit or are impractical.

2. Mobility and Flexibility:

• This type of gantry frame is equipped with wheels or casters, allowing it to be moved easily within a facility or job site. The frame can be relocated quickly to handle different tasks, making it perfect for flexible operations or temporary setups in various industries.

3. Load Capacity:

• Small mobile gantry frames are capable of lifting loads ranging from a few hundred kilograms to approximately 5 tons, depending on the model and configuration. This makes them suitable for light to medium lifting applications, such as handling equipment, machinery, or construction materials.

4. Adjustable Height and Span:

• Many small mobile gantry frames come with adjustable height and span, allowing them to be customized to fit specific lifting requirements. This adaptability ensures that the frame can handle different types of loads and reach the desired lifting heights in various working conditions.

5. Easy to Assemble and Disassemble:

• Small mobile gantry frames are typically designed for easy assembly and disassembly, enabling them to be quickly set up and taken down as needed. This feature is especially useful in situations where the crane needs to be stored or relocated frequently.

6. Durable and Robust:

• Despite their smaller size, small mobile gantry frames are built with high-quality materials to ensure durability and reliability. They are designed to withstand frequent use in demanding environments, offering long-lasting performance with minimal maintenance.

7. Cost-Effective Solution:

• Compared to larger, more complex gantry cranes, small mobile gantry frames are a more cost-effective solution for lifting and moving smaller loads. They offer good performance at a lower price point, making them ideal for small businesses, workshops, or DIY projects.

8. Versatile Application:

• Workshops and Small Factories: Lifting small equipment or machinery for repair or maintenance.

• Construction: Moving lightweight building materials or tools.

• Laboratories: Handling heavy lab equipment or materials.

• Warehouses: Transporting small to medium-sized goods across storage areas.

• Automotive Repair: Lifting car parts or small machinery for assembly or maintenance.

• These gantry frames are used in a variety of industries and applications, including:

Applications:

1. Workshops and Factories:

• Small mobile gantry frames are commonly used in workshops and small manufacturing environments to move light-to-medium-weight machinery, tools, or materials. Their portability allows them to be easily moved to different work areas, providing flexible lifting solutions.

2. Construction and Renovation:

• In construction or renovation projects, a small mobile gantry frame is used to move building materials like steel beams, wooden planks, and pipes, especially in tight spaces or areas that lack overhead lifting options.

3. Maintenance and Repairs:

• In factories or maintenance workshops, these cranes are often used for lifting and positioning equipment for repair, assembly, or disassembly. Their compact size allows them to be used in confined spaces where larger cranes would be impractical.

4. Automotive and Machinery Handling:

• Small mobile gantry frames are commonly used in automotive workshops for lifting parts, engines, or transmission systems during repairs or assembly. They are also used in light industrial applications to move equipment and machinery in small factories.

5. Warehousing and Logistics:

• In warehouses, these cranes help move goods or stock within aisles, particularly in areas with limited floor space. The portability and adjustable design make them suitable for handling materials of varying sizes.

Specifications:

• Load Capacity: Typically between 100 kg and 5 tons, depending on the model.

• Span: Adjustable, typically ranging from 2 meters to 6 meters.

• Height: Adjustable lifting height, generally ranging from 2 meters to 4 meters.

• Travel Speed: Low-speed movement, generally around 5 m/min to 20 m/min, depending on the design.

• Power Source: Manual, electric, or a combination of both. Many small mobile gantry frames are manually operated, but electric versions are also available for more intensive tasks.

• Material: Typically made from steel, aluminum, or other high-strength alloys, providing a balance of strength and portability.

Advantages:

1. Portability:

• The small mobile gantry frame can be moved easily from one location to another, providing flexibility for different tasks. This is particularly advantageous for smaller businesses or projects that require frequent changes in equipment setup.

2. Space Efficiency:

• Its compact size makes it ideal for environments with limited space, such as small workshops, factories, or construction sites. It can be used in places where large cranes or hoisting equipment cannot fit.

3. Cost-Effective:

• Small mobile gantry frames are more affordable than larger, stationary gantry cranes. They provide a cost-effective solution for light lifting tasks, especially in smaller operations where heavy-duty equipment isn’t necessary.

4. Ease of Use:

• The crane is user-friendly and can be operated with minimal training. Many models come with simple controls, making them easy for workers to handle efficiently.

5. Durability:

• Built to withstand regular use, small mobile gantry frames are designed for long-lasting performance, providing value over time with minimal maintenance.

Maintenance and Safety Considerations:

• Regular Inspection: Ensure that the frame, wheels, hoists, and lifting components are regularly checked for wear or damage.

• Lubrication: Keep moving parts, such as wheels and hoists, well-lubricated to ensure smooth operation and reduce wear.

• Safety Checks: Test safety features like limit switches and emergency stop buttons to ensure proper functioning.

• Load Capacity: Never exceed the rated load capacity to prevent accidents or damage to the crane.

• Storage: When not in use, store the crane in a dry area to protect it from corrosion or weather-related damage.

Conclusion:

The Small Mobile Gantry Frame is an ideal solution for businesses, workshops, and construction sites requiring flexible and portable lifting equipment. Its compact size, ease of use, and ability to handle light-to-medium loads make it a versatile tool in a wide range of industries. With adjustable features, high durability, and affordability, it is an excellent choice for operations that need a mobile and efficient lifting solution in tight spaces or temporary setups.
