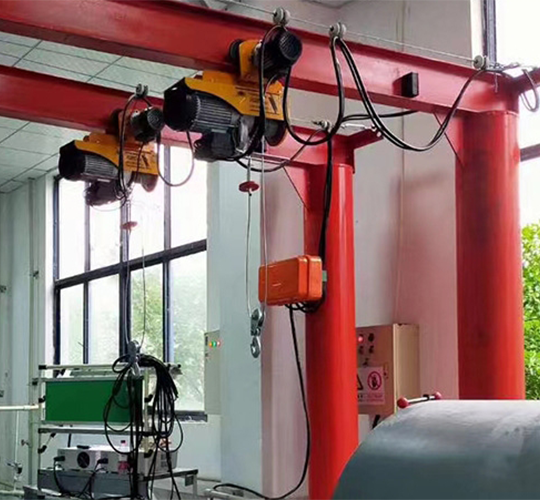

Fixed Column Cantilever Crane Product Introduction

A Fixed Column Cantilever Crane is a type of lifting equipment designed for a wide range of industrial applications, particularly for handling heavy materials in confined spaces or at fixed locations. This Crane is characterized by its sturdy fixed column, which supports the cantilever arm or boom, and is ideal for operations where mobility of the crane is not required but precision and stability are critical.

Key Features:

1. Fixed Column Structure: The crane is mounted on a fixed vertical column, providing stability and ensuring that the lifting operation is steady and reliable.

2. Cantilever Arm: The crane's arm extends horizontally from the column, allowing for efficient loading, unloading, and material handling within a specific range.

3. High Lifting Capacity: Typically designed to handle heavy loads, these cranes can be equipped with electric hoists, chain blocks, or other lifting mechanisms to suit various material handling needs.

4. Rotational Movement: Depending on the design, the cantilever arm may have rotational movement, allowing the operator to adjust the working angle of the crane to better access different positions.

5. Space-Saving Design: Because of the fixed column and cantilever arm structure, these cranes are ideal for facilities with limited space, maximizing the vertical area without occupying too much ground space.

6. Durability and Safety: Built with strong materials to endure heavy-duty applications, these cranes typically meet stringent safety standards, ensuring secure operation in diverse working environments.

Applications:

• Warehouse and Storage: For lifting and moving large containers, goods, or machinery.

• Manufacturing Plants: Especially in assembly lines or production processes where materials need to be moved over a fixed position.

• Construction Sites: Used to handle materials and equipment that need to be placed in specific locations.

• Shipping and Logistics: For loading and unloading items onto trucks, ships, or other transport vehicles.

Advantages:

• Stable Operation: The fixed column provides a solid foundation, reducing vibration and increasing lifting precision.

• Efficient Space Utilization: The cantilever design allows for lifting over obstacles without the need for moving the crane itself.

• Cost-Effective: The simple structure and design can reduce overall operational and maintenance costs.

• Customizable: These cranes can be tailored to meet specific lifting heights, arm lengths, and load capacities.

This type of crane is well-suited for industries that require precision, reliability, and stability for material handling and lifting in fixed locations.

Common Questions about Fixed Column Cantilever Cranes

Here are some frequently asked questions (FAQs) about Fixed Column Cantilever Cranes, including their design, operation, and maintenance:

1. What is a Fixed Column Cantilever Crane?

A Fixed Column Cantilever Crane is a type of overhead lifting equipment that features a vertical column for support, with a horizontal arm (cantilever) extending from it. The crane is fixed in position and is used for handling heavy loads within a confined space or specific area.

2. What are the main advantages of a Fixed Column Cantilever Crane?

• Space Efficiency: The fixed column design saves floor space while allowing for a significant lifting range.

• Stability: The fixed column ensures the crane remains stable, even under heavy loads, offering precise and safe lifting.

• Cost-Effective: Generally, these cranes have a simpler design, leading to lower installation and maintenance costs compared to more complex lifting systems.

• Versatility: These cranes can be customized for various lifting capacities, arm lengths, and heights to meet different operational needs.

3. What load capacities do Fixed Column Cantilever Cranes typically support?

The load capacity of a Fixed Column Cantilever Crane varies depending on its design and the materials used. They can typically support loads ranging from a few hundred kilograms to several tons, with some custom models designed for even higher capacities.

4. How do you maintain a Fixed Column Cantilever Crane?

Regular maintenance is essential to keep the crane in good working condition:

• Inspection of Structural Components: Periodically check the fixed column, cantilever arm, and joints for signs of wear, corrosion, or damage.

• Lubrication: Lubricate the moving parts (such as the hoist, winch, and arm joints) to reduce friction and wear.

• Safety Checks: Ensure all safety features, such as limit switches, emergency stop buttons, and load indicators, are functional.

• Electrical System Maintenance: Inspect the wiring, controls, and electrical components for any issues.

5. What is the lifespan of a Fixed Column Cantilever Crane?

The lifespan of a Fixed Column Cantilever Crane depends on factors such as the materials used, the frequency of use, and the level of maintenance. Generally, with proper maintenance, these cranes can last between 15 to 25 years or more.

6. Can a Fixed Column Cantilever Crane be moved or relocated?

No, the crane is designed to be stationary, with a fixed column anchoring it in place. However, some models may have movable cantilever arms that can rotate or extend to reach different work areas within a fixed location.

7. What safety features are included in Fixed Column Cantilever Cranes?

• Overload Protection: Prevents the crane from lifting loads beyond its maximum capacity.

• Limit Switches: Automatically stop the crane at the end of its operating range to avoid damage.

• Emergency Stop: Allows the operator to immediately halt all crane movements in case of an emergency.

• Anti-Collision Devices: In some advanced models, sensors or alarms prevent the crane from colliding with obstacles.

8. Can the cantilever arm rotate or adjust?

Yes, some Fixed Column Cantilever Cranes come with a rotating or adjustable cantilever arm, allowing the crane to cover a wider area or reach specific positions without moving the base column.

By addressing these common questions, users can make informed decisions regarding the selection, operation, and maintenance of Fixed Column Cantilever Cranes, ensuring safe and efficient material handling in their operations.

about us

Shandong Longhui Crane Machinery Co., Ltd. was founded in 1992 and is a professional manufacturer of various types of lifting equipment with a registered capital of RMB 318 million. Mainly engaged in the design, manufacturing, installation, renovation, maintenance and other businesses of general bridge cranes, gantry cranes, metallurgical cranes, explosion-proof electric hoists, wire rope electric hoists, European Style Cranes and other products. The products involve 30 series and 6000 categories.

The company covers an area of 120000 square meters and currently has more than 1200 employees, including 32 middle and senior management personnel, 18 senior engineers, 106 intermediate engineers, and 272 engineering and technical personnel. It has more than ten functional departments including design, production, quality inspection, safety, etc., including electrical automation, raw materials, riveting and welding, assembly, heat treatment, machining, electric hoist, maintenance and other workshops. The company has 328 sets of advanced production equipment, more than 300 pieces of various testing instruments and measuring instruments, with good performance and effective calibration, and is a third level qualified measurement unit. The company has sales and service agencies in various provinces, cities, and other regions across the country, radiating to major power plants/steel mills, manufacturing enterprises, industrial and mining enterprises, ports and terminals, and cargo distribution centers.

BMH electric hoist gantry crane Parameters

Rated lifting capacity:

Gn=1t, 2t, 3t, 5t, 10t, 16t, 20t

Span span:

S7.5m-22m

Lifting mechanism/Lifting mechanism:

Electric hoist

Job level/work class:

A3, A5

Effectively lifting height Int;

H6m-30m

MH/MHE electric hoist gantry crane Parameters

Rated lifting capacity/rated lifting capacity:

Gn=5t, 10t, 16t, 20t,

32t(5+5t,10+10t16+16t,20+20t)

Limit span: 7.5m<S<50m

Effective lifting height:

6m<H<30m

Structure type:

Box type, truss type

Job level/work class:

JC=25%, A3 level

Lifting mechanism/lifting mechanism:

Single electric hoist, dual electric hoist

ML type electric hoist gantry crane Parameters

Rated lifting capacity/rated lifting capacity:

Gn=5t, 10t, 16t, 20t

Limit span:

7.5m≤S<50m

Effective lifting height:

6m≤H<30m

Job level/workclass:

JC=25%, A3 level

Lifting mechanism/Lifting mechanism:

Electric hoist

ML type electric hoist gantry crane Parameters

Rated lifting capacity/rated lifting capacity:

Gn=5t, 10t, 16t, 20t

Limit span:

7.5m≤S<50m

Effective lifting height:

6m≤H<30m

Job level/workclass:

JC=25%, A3 level

Lifting mechanism/Lifting mechanism:

Electric hoist
